【特徴】
●Description

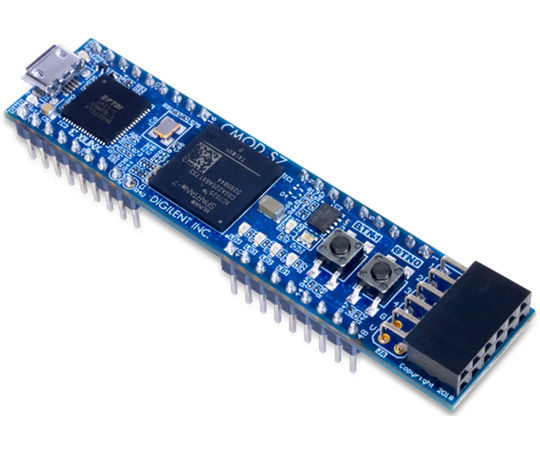

●The Cmod, or Carrier Module, family of products is designed to offer quick, simple, and flexible integration of an FPGA into circuit design, prototyping, and learning/hobby projects.The Digilent Cmod S7 is a small, 48-pin DIP form factor board, populated with 36 pins, built around a Xilinx Spartan-7 FPGA that brings FPGA power and prototyping to a solderless breadboard.The board includes a Quad-SPI flash for programming, as well as a USB-JTAG programming circuit and USB-UART bridge. The Cmod S7 also features a clock source, Pmod port, and onboard I/O with LEDs and pushbuttons. There are 32 FPGA I/O signals, 2 FPGA analog input signals, an external power input rail, and ground that are routed to 100-mil-spaced through-hole pins, making the Cmod S7 compatible with solderless breadboards. This form factor makes the Cmod S7 a great option for flexible and affordable prototyping, or learning FPGA and digital logic circuits. At just .7 by 3.05, it can also be loaded in a standard socket and used in embedded systems.The Spartan-7 FPGA on the Cmod S7 fits performance into a small form-factor packaging. With the MicroBlaze Soft Processor Core from Xilinx, you can create embedded applications with a variety of peripherals, memory, and interfaces.If your design requires transceiver lines or more FPGA resources, we recommend the higher-performance Cmod A7, featuring an Artix-7 FPGA.Guides and demos are available to help users get started quickly with the Cmod S7. These can be found through the Support Materials tab.
●Features
●Xilinx Spartan-7 FPGA（XC7S25-1CSGA225C）
●〇3,650 slices containing four 6-input LUTs and 8 flip-flops
●〇1,620 Kbits of fast block RAM
●〇Three clock management tile, each with a phase-locked loop and mixed-mode clock manager
●〇80 DSP slices
●〇Internal clock speeds exceeding 450 MHz
●〇On-chip analog-to-digital converter（XADC）
●〇Programmable over JTAG and Quad-SPI Flash
●Memory
●〇4 MBQuad-SPI Flash
●Power
●〇Powered from USB or 5V external supply connected to DIP pin 24（micro USB cable NOT included）
●USB
●〇USB-JTAG programming circuitry
●〇USB-UART bridge
●Push-buttons and LEDs
●〇2 Buttons
●〇4 LEDs
●〇1 RGB LED
●Expansion Connectors
●〇1 Pmod connector
●8 total FPGA I/O
●〇48-pin DIP form-factor headers
●36 populated pins
●■32 total FPGA I/O
●■2 Single-ended 0-3.3V analog inputs to XADC
●Product Compliance：
●〇HTC：8473301180
●〇ECCN：EAR99
●What's Included
●Cmod S7 Module
●Custom Digilent cardboard box with protective foam
【仕様】
追加情報
メーカー名:
Digilent
メーカー品番:
410-376
予定納期:
注文から1～3日で発送
